High-frequency tube mill line

YJ-32 ERW Tube Mill

YJ-32 high-frequency tube mill for small-diameter, thin-wall round, square and rectangular tube.

  • Φ12.7–38.1mm Round tube OD
  • 0.4–2.0mm Round tube wall
  • 0–120m/min Production speed
Enquire about this model Compare models
10 mmΦ38.1Φ12.7Φ38.1Φ12.7
OD
Φ12.7–38.1 mm
Wall
0.4–2.0 mm
Line speed
0–120 m/min

All 12 models at one scale (largest round OD)

  1. YJ-20
  2. YJ-32
  3. YJ-50
  4. YJ-76
  5. YJ-89
  6. YJ-102
  7. YJ-114
  8. YJ-127
  9. YJ-165
  10. YJ-219
  11. YJ-254
  12. YJ-273

Drawn to scale · OD, wall and speed are separate ranges, not simultaneous limits; actual capability depends on material and final configuration.

What it makes and how the line is built

YJ-32 is for small-diameter, thin-wall round, square and rectangular tube. Its diameter, wall thickness and speed range is in the specification list and model comparison table below. Among its neighbors, YJ-20 covers smaller diameters and YJ-50 covers larger diameters and thicker walls.

A complete line consists of the uncoiler, leveler, shear and butt welder, spiral accumulator, forming and sizing mill, high-frequency welder, flying saw and run-out table, with rollers tooled for the product. Round, square and rectangular tube are made on the same mill by changing rollers. For thin-wall products slightly beyond this model's range, a widened mill can be discussed.

Please tell us the material, tube shape, size and wall thickness range, target speed and cut length, and whether you are building a new line or replacing existing equipment. If you have not chosen a model, describe the product and we will recommend one.

  1. Uncoiling & strip joining
  2. Accumulation & leveling
  3. Roll forming & HF welding
  4. Weld treatment & cooling
  5. Sizing & straightening
  6. Cutting & run-out

Materials and quotations

Materials Carbon steel, galvanized and zinc-aluminium-magnesium (ZAM) coated strip, among others.

For a quotation, please send
  • The tube diameter range you need to produce
  • Thickness range
  • Material

Entry equipment for the YJ-32

The uncoiler, leveler, shear & butt welder and spiral accumulator are matched to the strip material, width and thickness and the line speed, and the uncoiler also to the coil weight and diameters; the configuration is set per project.

Where YJ-32 sits among 12 models

Enter a target OD to see which models cover it. Neighbouring ranges overlap, so wall, material and output also decide the choice.

Enter a round-tube outside diameter to highlight the models that cover it.

  1. YJ-20 Φ10–25.4 mm Wall 0.4–1.5 mm Speed 0–100 m/min
  2. YJ-32 This model Φ12.7–38.1 mm Wall 0.4–2.0 mm Speed 0–120 m/min
  3. YJ-50 Φ19.1–63.5 mm Wall 0.6–3.0 mm Speed 0–100 m/min
  4. YJ-76 Φ38.1–89 mm Wall 0.8–3.5 mm Speed 0–80 m/min
  5. YJ-89 Φ50–102 mm Wall 1.0–4.0 mm Speed 0–70 m/min
  6. YJ-102 Φ50–114 mm Wall 1.2–4.5 mm Speed 0–70 m/min
  7. YJ-114 Φ63.5–127 mm Wall 1.5–5.0 mm Speed 0–60 m/min
  8. YJ-127 Φ63.5–140 mm Wall 1.5–5.0 mm Speed 0–60 m/min
  9. YJ-165 Φ76–165 mm Wall 1.5–6.0 mm Speed 0–50 m/min
  10. YJ-219 Φ89–219 mm Wall 2.0–8.0 mm Speed 0–50 m/min
  11. YJ-254 Φ114–254 mm Wall 3.0–9.0 mm Speed 0–40 m/min
  12. YJ-273 Φ140–273 mm Wall 4.0–10.0 mm Speed 0–30 m/min

YJ-219, YJ-254 and YJ-273 are large-diameter models, designed and built to order.

Key specifications

Size, wall thickness and speed are not independent combinations. Actual capability depends on material, finished-product requirements and the final equipment configuration.

Round tube outside diameter
12.7–38.1 mm
Round tube wall thickness
0.4–2.0 mm
Square tube size
10 × 10–30 × 30 mm
Square tube wall thickness
0.4–1.5 mm
Rectangular tube size
12 × 8–40 × 20 mm
Rectangular tube wall thickness
0.4–1.5 mm
Production speed
0–120 m/min

Equipment illustrations

These are renders of a 3D model of the line showing the type of equipment, not photographs of the YJ-32; the configuration is defined in each project's technical agreement.

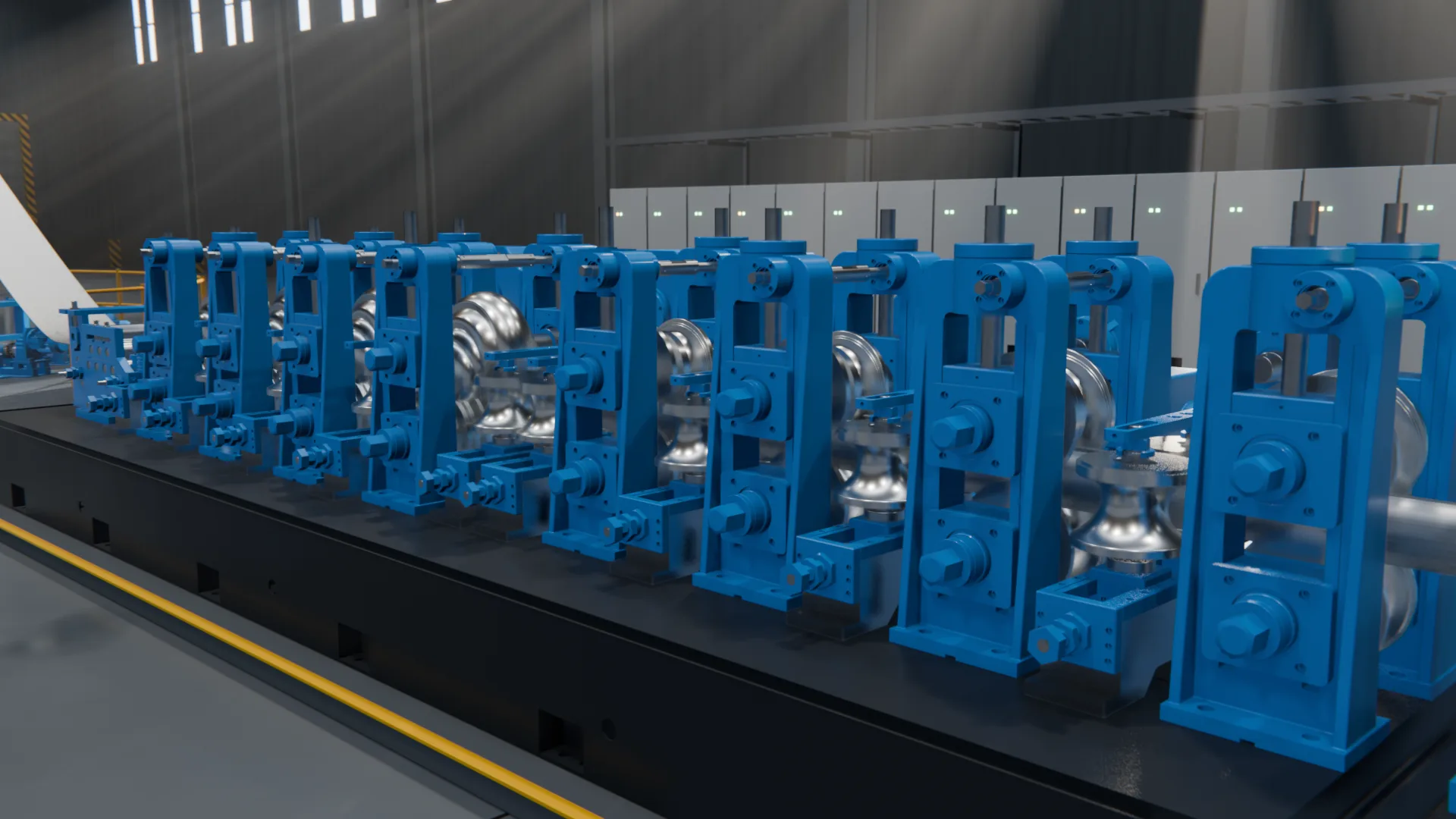

  • Illustrative render: Roll formingIllustrative render Roll forming

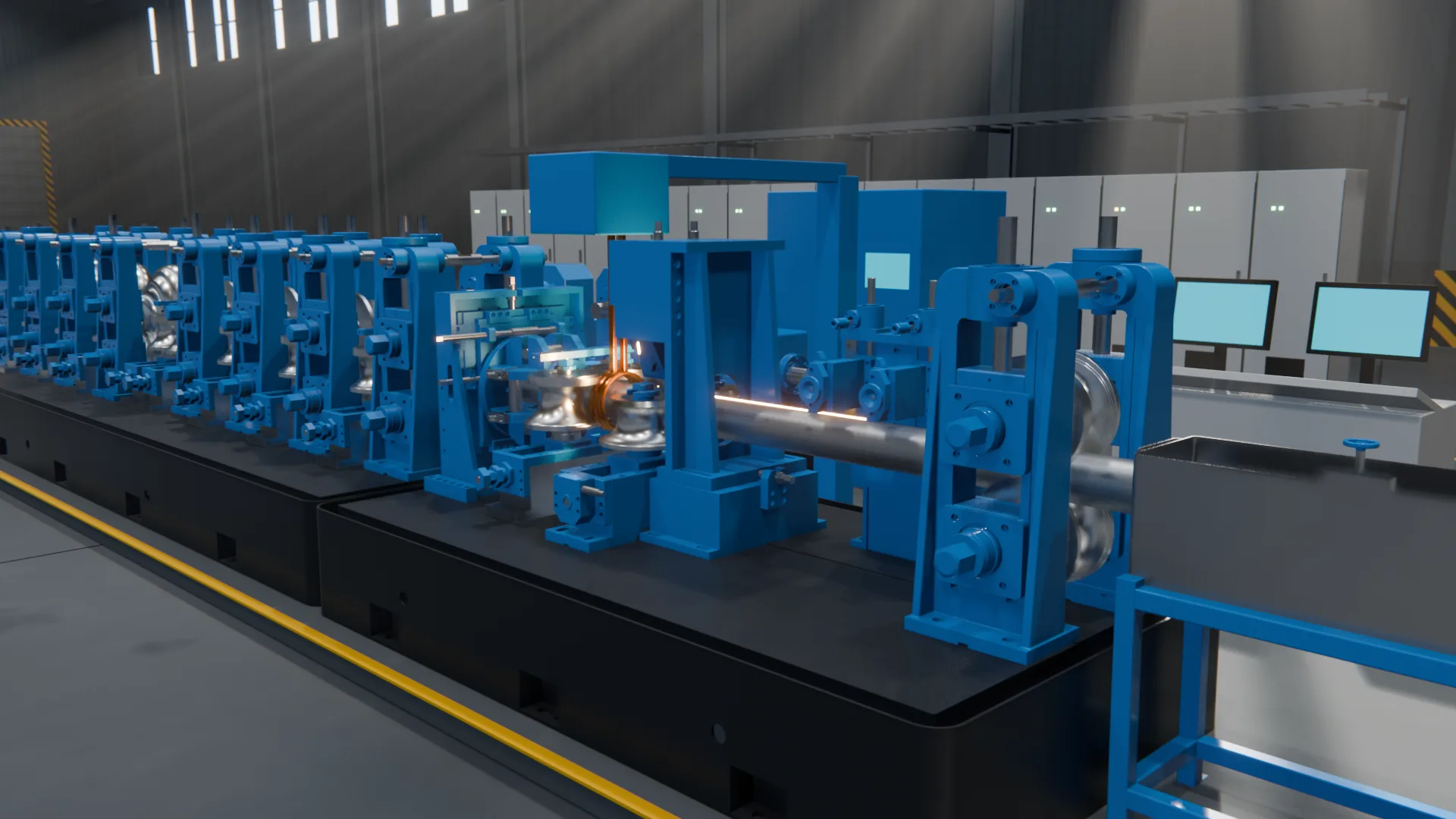

  • Illustrative render: HF weldingIllustrative render HF welding

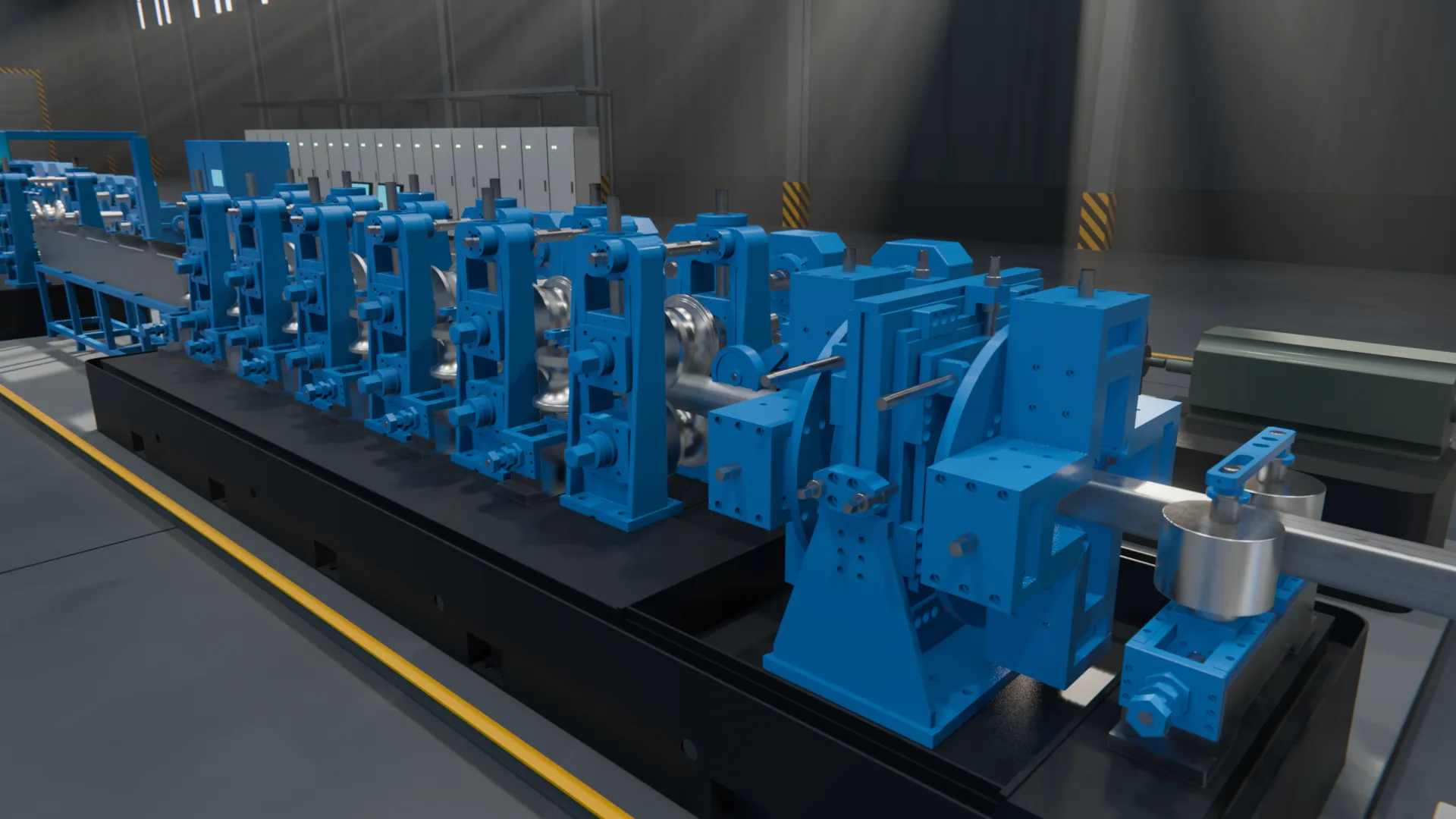

  • Illustrative render: Sizing & squaringIllustrative render Sizing & squaring

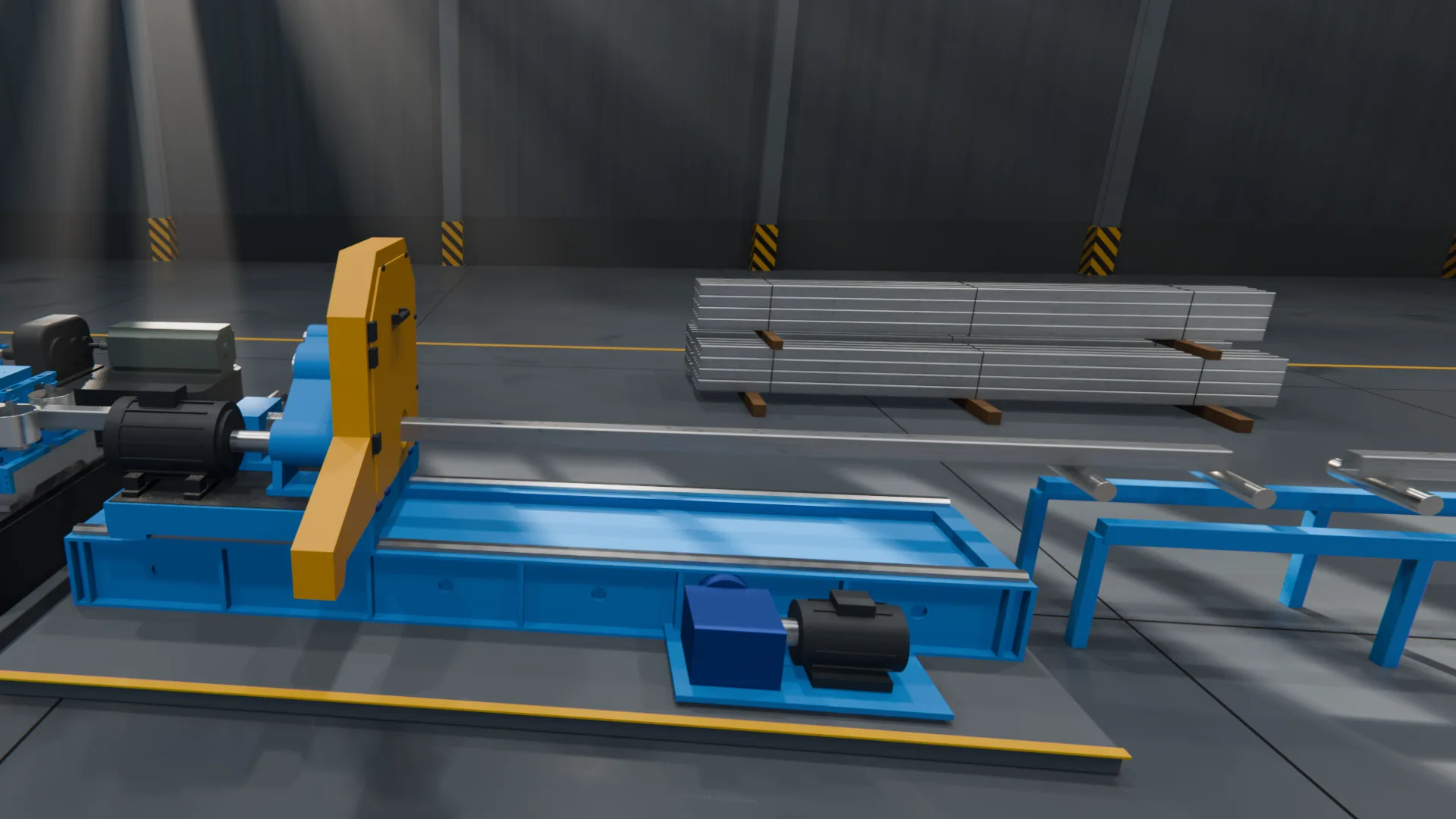

  • Illustrative render: Cutting & run-outIllustrative render Cutting & run-out

Model comparison

Tube mill models
ModelRound tube OD mmWall mmSquare tube mmWall mmRectangular tube mmWall mmLine speed m/min
YJ-20Φ10–25.40.4–1.58×8–20×200.4–1.010×6–25×150.4–1.00–100
YJ-32Φ12.7–38.10.4–2.010×10–30×300.4–1.512×8–40×200.4–1.50–120
YJ-50Φ19.1–63.50.6–3.015×15–50×500.6–2.520×10–60×400.6–2.50–100
YJ-76Φ38.1–890.8–3.530×30–70×700.8–3.040×20–80×600.8–3.00–80
YJ-89Φ50–1021.0–4.040×40–80×801.0–3.550×30–90×701.0–3.50–70
YJ-102Φ50–1141.2–4.540×40–90×901.2–4.050×30–100×801.2–4.00–70
YJ-114Φ63.5–1271.5–5.050×50–100×1001.5–4.260×40–120×801.5–4.20–60
YJ-127Φ63.5–1401.5–5.050×50–110×1101.5–4.560×40–130×901.5–4.50–60
YJ-165Φ76–1651.5–6.060×60–130×1301.5–5.070×50–150×1101.5–5.00–50
YJ-219Φ89–2192.0–8.070×70–170×1702.0–7.080×60–190×1502.0–7.00–50
YJ-254Φ114–2543.0–9.090×90–200×2003.0–7.5100×80–250×1503.0–7.50–40
YJ-273Φ140–2734.0–10.0110×110–215×2154.0–8.5130×90–250×1804.0–8.50–30

Square and rectangular sizes are side-length ranges. Size, wall thickness and speed are not independent combinations; actual capability depends on the material and final configuration.

Further standard and custom models are available on request.

Source: company product catalogue (April 2025 edition), page 12.
