YJ-114 ERW Tube Mill

YJ-114 high-frequency tube mill, for medium-to-large diameter, heavier-wall round, square and rectangular tube.

  • Φ63.5–127mm Round tube OD
  • 1.5–5.0mm Round tube wall
  • 0–60m/min Production speed
Enquire about this model Compare models
20 mmΦ127Φ63.5Φ127Φ63.5
OD
Φ63.5–127 mm
Wall
1.5–5.0 mm
Line speed
0–60 m/min

All 12 models at one scale (largest round OD)

  1. YJ-20
  2. YJ-32
  3. YJ-50
  4. YJ-76
  5. YJ-89
  6. YJ-102
  7. YJ-114
  8. YJ-127
  9. YJ-165
  10. YJ-219
  11. YJ-254
  12. YJ-273

Drawn to scale · OD, wall and speed are separate ranges, not simultaneous limits; actual capability depends on material and final configuration.

What it makes and how the line is built

YJ-114 is for medium-to-large diameter, heavier-wall round, square and rectangular tube. Its diameter, wall thickness and speed range is in the specification list and model comparison table below. It covers larger diameters and thicker walls than YJ-89; for larger diameters, compare YJ-127 and the models above it.

A complete line consists of the uncoiler, leveler, shear and butt welder, spiral accumulator, forming and sizing mill, high-frequency welder, flying saw and run-out table, with rollers tooled for the product. Round, square and rectangular tube are made on the same mill by changing rollers. For thin-wall products slightly beyond this model's range, a widened mill can be discussed.

Please tell us the material, tube shape, size and wall thickness range, target speed and cut length, and whether you are building a new line or replacing existing equipment. If you have not chosen a model, describe the product and we will recommend one.

  1. Uncoiling & strip joining
  2. Accumulation & leveling
  3. Roll forming & HF welding
  4. Weld treatment & cooling
  5. Sizing & straightening
  6. Cutting & run-out

Materials and quotations

Materials Carbon steel, galvanized and zinc-aluminium-magnesium (ZAM) coated strip, among others.

For a quotation, please send
  • The tube diameter range you need to produce
  • Thickness range
  • Material

Entry equipment for the YJ-114

The uncoiler, leveler, shear & butt welder and spiral accumulator are matched to the strip material, width and thickness and the line speed, and the uncoiler also to the coil weight and diameters; the configuration is set per project.

Where YJ-114 sits among 12 models

Enter a target OD to see which models cover it. Neighbouring ranges overlap, so wall, material and output also decide the choice.

Enter a round-tube outside diameter to highlight the models that cover it.

  1. YJ-20 Φ10–25.4 mm Wall 0.4–1.5 mm Speed 0–100 m/min
  2. YJ-32 Φ12.7–38.1 mm Wall 0.4–2.0 mm Speed 0–120 m/min
  3. YJ-50 Φ19.1–63.5 mm Wall 0.6–3.0 mm Speed 0–100 m/min
  4. YJ-76 Φ38.1–89 mm Wall 0.8–3.5 mm Speed 0–80 m/min
  5. YJ-89 Φ50–102 mm Wall 1.0–4.0 mm Speed 0–70 m/min
  6. YJ-102 Φ50–114 mm Wall 1.2–4.5 mm Speed 0–70 m/min
  7. YJ-114 This model Φ63.5–127 mm Wall 1.5–5.0 mm Speed 0–60 m/min
  8. YJ-127 Φ63.5–140 mm Wall 1.5–5.0 mm Speed 0–60 m/min
  9. YJ-165 Φ76–165 mm Wall 1.5–6.0 mm Speed 0–50 m/min
  10. YJ-219 Φ89–219 mm Wall 2.0–8.0 mm Speed 0–50 m/min
  11. YJ-254 Φ114–254 mm Wall 3.0–9.0 mm Speed 0–40 m/min
  12. YJ-273 Φ140–273 mm Wall 4.0–10.0 mm Speed 0–30 m/min

YJ-219, YJ-254 and YJ-273 are large-diameter models, designed and built to order.

Key specifications

Size, wall thickness and speed are not independent combinations. Actual capability depends on material, finished-product requirements and the final equipment configuration.

Round tube outside diameter
63.5–127 mm
Round tube wall thickness
1.5–5.0 mm
Square tube size
50 × 50–100 × 100 mm
Square tube wall thickness
1.5–4.2 mm
Rectangular tube size
60 × 40–120 × 80 mm
Rectangular tube wall thickness
1.5–4.2 mm
Production speed
0–60 m/min

Photographs from the company archive or former website show equipment of this series; the configuration is defined in each project's technical agreement.

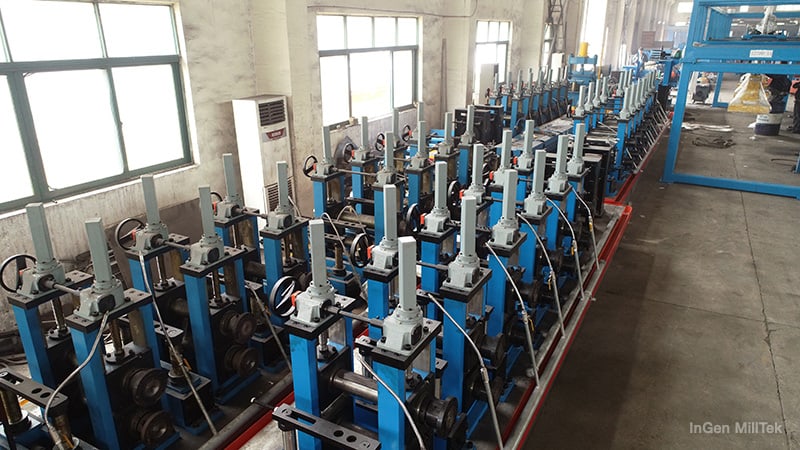

YJ-114 tube mill
Company archive equipment photograph

Model comparison

Tube mill models
ModelRound tube OD mmWall mmSquare tube mmWall mmRectangular tube mmWall mmLine speed m/min
YJ-20Φ10–25.40.4–1.58×8–20×200.4–1.010×6–25×150.4–1.00–100
YJ-32Φ12.7–38.10.4–2.010×10–30×300.4–1.512×8–40×200.4–1.50–120
YJ-50Φ19.1–63.50.6–3.015×15–50×500.6–2.520×10–60×400.6–2.50–100
YJ-76Φ38.1–890.8–3.530×30–70×700.8–3.040×20–80×600.8–3.00–80
YJ-89Φ50–1021.0–4.040×40–80×801.0–3.550×30–90×701.0–3.50–70
YJ-102Φ50–1141.2–4.540×40–90×901.2–4.050×30–100×801.2–4.00–70
YJ-114Φ63.5–1271.5–5.050×50–100×1001.5–4.260×40–120×801.5–4.20–60
YJ-127Φ63.5–1401.5–5.050×50–110×1101.5–4.560×40–130×901.5–4.50–60
YJ-165Φ76–1651.5–6.060×60–130×1301.5–5.070×50–150×1101.5–5.00–50
YJ-219Φ89–2192.0–8.070×70–170×1702.0–7.080×60–190×1502.0–7.00–50
YJ-254Φ114–2543.0–9.090×90–200×2003.0–7.5100×80–250×1503.0–7.50–40
YJ-273Φ140–2734.0–10.0110×110–215×2154.0–8.5130×90–250×1804.0–8.50–30

Square and rectangular sizes are side-length ranges. Size, wall thickness and speed are not independent combinations; actual capability depends on the material and final configuration.

Further standard and custom models are available on request.

Source: company product catalogue (April 2025 edition), page 12.
